ECO 350: One Platform. Two Line Configurations.
The next generation ECO 350 combines higher output, greater flexibility and proven pharmaceutical packaging expertise on one standardized platform.
More output. More flexibility. One platform.
Designed with German technology and manufactured in Asia, the ECO 350 supports pharmaceutical and nutraceutical manufacturers in increasing productivity while making efficient use of available production space. Depending on production requirements and factory layout, customers can choose between two line configurations: a conveyor configuration for maximum layout flexibility or a Direct Link configuration for maximum output and a reduced footprint.
With outputs of up to 600 blisters per minute, the ECO 350 helps manufacturers meet growing production demands while benefiting from a reliable and cost-effective packaging solution.
Combining advanced technology with user-friendly operation, the ECO 350 features the next generation BM 350 blister machine and CM 250 cartoner. A redesigned compact station, optimized blister transfer and SmartControl Basic operation support reliable daily production and efficient line performance.
Additional highlights include rapid changeovers, energy-efficient operation and low maintenance requirements. Integrated inspection systems support product quality by checking product presence, position and integrity throughout the packaging process.
The ECO 350 handles a wide range of blister formats and materials while maintaining high throughput and consistent packaging quality. Built on a standardized CTO architecture, it combines competitive performance with the GMP-compliant design, documentation and lifecycle support expected from Uhlmann.
The benefits to you of the ECO 350 blister line
- ReliableProven processes and suppliers ensure ECO 350 matches the quality of Uhlmann Germany.
- IntuitiveUser-friendly Smart Control HMI enables easy operation.
- PPWR-compliant designThe design is intended for sustainable mono-material packaging.

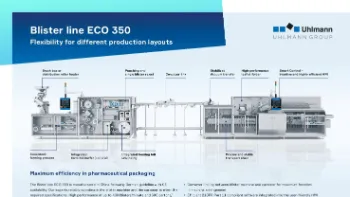

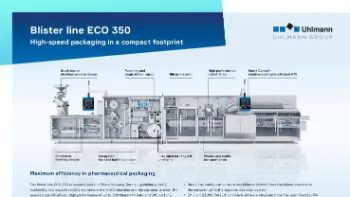

Choose the configuration that fits your production environment
Whether you need maximum output in a compact footprint or greater flexibility for your factory layout, the ECO 350 enables you to select the setup that best supports your production goals.
ECO 350 blister line in focus
Pictures of the ECO 350
Technical data at a glance
| Blister machine BM 350 | |
|---|---|
| Max. output | up to 600 blister/min* |
| Mode of operation | roller sealing |
| Scope of application | oral solid dose products |
| Max. forming depth | 12 mm (PVC), 10 mm (AI) |
| Max. reel diameter | forming material 500 mm (800 mm**), lid material 300 mm |
| Processable forming materials | Al, PVC, PVdC, ACLAR, HDPE, PET; PP (in preparation) |
| Processable lid materials | hard Al, soft Al, laminated Al foils, HDPE, PET; PP (in preparation) |
| Cartoning Machine CM 250 | |
|---|---|
| Max. output | up to 250 cartons/min. - optional 300 cartons/min. |
| Scope of application | blisters |
| Max. carton size (A x B x H) | 100 x 90 x 150 mm |
| Pitch | 5" |
| Max. no. of blisters | 10 |
| Max. blister stack height | 85 mm |
| Types of closure | tuck-in and hot-melt |
