ECO 350
The blister line ECO 350 boosts pharma efficiency with up to 450 blisters/300 cartons per minute - ideal for small to large batches.
A high performing blister packaging line offering exceptional productivity, reliability, and cost-effective
Maximum efficiency in pharmaceutical packaging
The blister line ECO 350 is designed with German technology and manufactured in Asia. It is designed to meet the high demands of modern pharmaceutical production. With a maximum output of 450 blisters and 300 cartons per minute. ECO 350 aims to optimize efficiency and throughput for the pharmaceutical and nutraceutical sectors.
Combining advanced technology with user-friendly operation, the ECO 350 ensures precision and reliability in blister packaging operation. Its innovative features include a user-friendly HMI of the latest generation with touch screen and integrated camera, seamlessly embedded into the central operator interface.
Additional highlights are rapid changeover capabilities, energy-efficient operation, and minimal maintenance requirements. Color inspection systems to check product position, presence, damage, shape, and color integrity, making it a cost-effective solution for small and medium packaging needs.
The ECO 350 stands out for its flexibility, handling a wide range of blister formats and materials while maintaining high throughput and consistent product quality.
The benefits to you of the ECO 350 blister line
- ReliableProven processes and suppliers ensure ECO 350 matches the quality of Uhlmann Germany.
- RobustKey components are imported from Germany to guarantee maximum uptime.
- IntuitiveUser-friendly Smart Control HMI enables easy operation.
ECO 350 blister line in focus

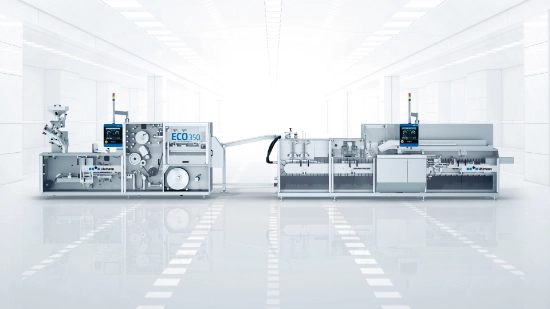

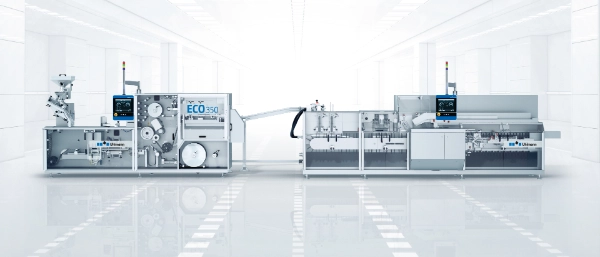

Pictures and videos of the ECO 350
| Blister machine BM 350 | |
|---|---|
| Max. output | 450 blister/min. |
| Mode of operation | roller sealing |
| Scope of application | solid dose products |
| Max. format area (index x width) | 200 x 256mm |
| Max. forming depth | 12 mm (PVC), 11 mm (AI) |
| Max. reel diameter | forming material 500 mm (800 mm*), lid material 300 mm |
| Processable forming materials | laminated AI foils, PVC, PVC/PDVC. PVC/Aclar, PP |
| Processable lid materials | gard AI, soft AI, AI with defines harndess, PVC/ALU, PVC/PDVC, PVC/Aclar, PET |
| Cartoning Machine CM 250 | |
|---|---|
| Max. output | 300 cartons/min. |
| Scope of application | blisters |
| Max. carton size (A x B x H) | 100 x 90 x 150 mm |
| Pitch | 5" (300 cartons/min.), 4" (500 cartons/min.) |
| Max. no. of blisters | 10 |
| Max. blister stack height | 85 mm (500 cartons/min.) |
| Types of closure | tuck-in and hot-melt |
