Serialization units

S 500

Unique carton marking and tracking are handled by tailored printing and inspection systems integrated into the cartoner, or by the S 500, the well-established Uhlmann Serialization Platform.

Serialization Platform for cartons

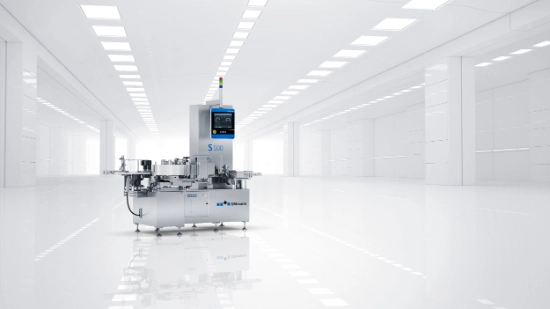

More compact, more flexible, and more favorably priced, the system provides reliable serialization and fast response to changing specifications. The unit is fitted with an inkjet printer and VisioRead inspection system, and can be integrated into a line or used flexibly at new or existing packaging machines and lines. Other features meeting additional requirements, such as tamper-evident labeling, top labeling, and top printing, are also available. In addition, further models of the S 500 series are to be added for the serialization of bottles and 360° bottle inspection.

An essential element of every Track & Trace by Uhlmann application is the in-house software developed to record, aggregate, and manage serialization data collected from the machine. This is transferred to line and site management levels.

Advantages of the S 500 at a glance

  • Time-savingExisting packaging lines – whether from Uhlmann or other suppliers – are quickly capable of serialization
  • User-friendlyGMP-compliant machine design for easy maintenance and cleaning
  • ErgonomicErgonomic operation and easy accessibility

Technical data at a glance

Max. Output

300/500* products/min.

Max. belt speed

60 m/Min.**

Carton size (A x B x H)

min. 30 x 15 x 85 mm
max. 180 x 105 x 250 mm

Length base module

approx. 600 mm

*optional performance extension **depending on packaging quality and folding box geometry

How can we help you?

Do you have any questions or need more information about our product and service portfolio?

To the contact form

Unfortunately, due to your current cookie settings, we are not allowed to display the video. To view the video, please change the cookie settings in the External section.

Change Cookie Settings

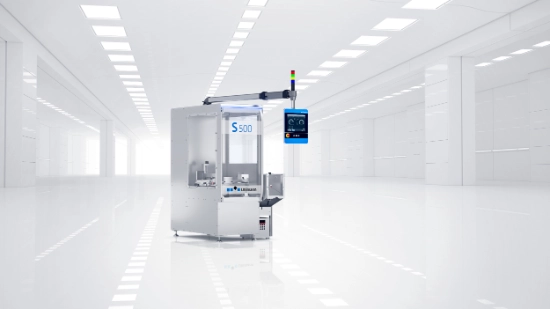

Uhlmann Serilization Platform S 500 for cartons
